**Set – 1 (15th February 2014 (Forenoon))**

1. When the optical power incident on a photo diode is 10 µW and the responsivity is 0.8 A/W, the photo current generated (in µA) is ____________.

**Solution :**https://www.youtube.com/watch?v=FdWts4kUgOI

2. In the figure, assume that the forward voltage drops to the PN diode D

_{1}and Schottky diode D

_{2}are 0.7 volts and 0.3 volts respectively. If ON denotes conducting state of the diode and OFF denotes the non conducting state of the diode, then in the circuit,

a. Both are ON

b. D

_{1}is ON and D

_{2}is OFF

c. Both are OFF

d. D

_{1}is OFF and D

_{2}is ON

**Solution :**https://www.youtube.com/watch?v=qteoesfhVco

3. If the fixed positive charges are present in the gate oxide of an N channel enhancement type MOSFET, it will lead to

a. a decrease in the threshold voltage

b. channel length modulation

c. an increase in substrate leakage current

d. an increase in accumulation capacitance

**Solution :**https://www.youtube.com/watch?v=em0VvbA7po4

4. A good current buffer has

a. Low input impedance and low output impedance

b. Low input impedance and high output impedance

c. high input impedance and low output impedance

d. high input impedance and high output impedance

**Solution :**https://www.youtube.com/watch?v=vdYmByP9zYY

5. A BJT is biased in forward active mode. Assume V

_{BE}= 0.7 volts, KT/q = 25 mV and reverse saturation current I

_{S}= 10

^{-13}Amp. The Transconductance of the BJT (in mA/volt) is…..

**Solution :**https://www.youtube.com/watch?v=nAh0aTdVp84

6. The doping concentration on the P side and N side of a silicon diode are 1x10

^{16}cm

^{-3}and 1x10

^{17}cm

^{-3}respectively. A forward bias of 0.3 volts is applied to the diode. At T = 300

^{o}K, the intrinsic carrier concentration of silicon, n

_{i}= 1.5 x 10

^{10}cm

^{-3}and KT/q = 26 mV. The electron concentration at the edge of the depletion region on the P side is

a. 2.3 x 10

^{9}cm

^{-3}

b. 1 x 10

^{16}cm

^{-3}

c. 1 x 10

^{17}cm

^{-3}

d. 2.25 x 10

^{6}cm

^{-3}

**Solution :**https://www.youtube.com/watch?v=KJ1NDAVBw0U

7. A depletion type N channel MOSFET is biased in its linear region for use as a voltage controlled resistor. Assume threshold voltage V

_{TH}= -0.5 volts, V

_{GS}= 2.0 volts, V

_{DS}= 5 volts, W/L = 100, C

_{ox}= 10

^{-8}F/cm

^{2}and µ

_{n}= 800 cm

^{2}/volt-sec. The value of the voltage controlled resistor (in Ω) is …..

**Solution :**https://www.youtube.com/watch?v=xzUDuBbZUXM

**SET – 2 (15th February 2014 (Afternoon))**

1. A silicon bar is doped with donor impurities N

_{D}= 2.25 x 10

^{15}atoms/cm

^{3}. Given the intrinsic carrier concentration of silicon at T = 300

^{o}K is n

_{i}= 1.5 x 10

^{10}cm

^{-3}. Assuming complete impurity ionization, the equilibrium electron and hole concentrations are

a. n

_{o}= 1.5 x 10

^{16}cm

^{-3}, p

_{0}= 1.5 x 10

^{5}cm

^{-3}

b. n

_{o}= 1.5 x 10

^{10}cm

^{-3}, p

_{0}= 1.5 x 10

^{15}cm

^{-3}

c. n

_{o}= 1.5 x 10

^{15}cm

^{-3}, p

_{0}= 1.5 x 10

^{10}cm

^{-3}

d. n

_{o}= 1.5 x 10

^{15}cm

^{-3}, p

_{0}= 1.5 x 10

^{5}cm

^{-3}

**Solution :**https://www.youtube.com/watch?v=zvQFdUBhINg

2. an increase in the base recombination of a BJT will increase

a. the common emitter DC current gain, β

b. the breakdown voltage BV

_{CEO}

c. the unity gain cutoff frequency, f

_{τ}

d. the Transconductance gm

**Solution :**https://www.youtube.com/watch?v=mY6YLyFzlyc

3. In CMOS technology, shallow P – well or N – well regions can be formed using

a. low pressure chemical vapor deposition

b. low energy sputtering

c. low temperature dry oxidation

d. low energy ion – implantation

**Solution :**https://www.youtube.com/watch?v=NA-HnsA124g

4. Assume electron charge q = 1.6 x 10

^{-19}C, KT/q = 25 mV and electron mobility µ

^{n}= 1000 cm

^{2}/volt-sec. If the concentration gradient of electrons injected into a P type silicon sample is 1 x 10

^{21}per cm

^{-3}, the magnitude of electron diffusion current density (in A/cm

^{2}) is ………….

**Solution :**https://www.youtube.com/watch?v=IBb_zfgQ1AY

5. Consider an abrupt PN junction (at T = 300

^{o}K) shown in the figure. The depletion region width X

_{n}on the N side of the junction is 0.2 µm and the permittivity of silicon (Ԑ

_{si}) is 1.044 x 10

^{-12}F/cm. At the junction, the approximate value of the peak electric field (in kV/cm) is………..

**Solution :**https://www.youtube.com/watch?v=6SGWS0QE-dQ

6. When a silicon diode having a doping concentration of N

_{A}= 9 x 10

^{16}cm

^{-3}on P side and N

_{D}= 1 x 10

^{16}cm

^{-3}on N side is reversed biased, the total depletion width is found to be 3 µm. Given that the permittivity of silicon is 1.04 x 10

^{-12}F/cm, the depletion width on the P side and the maximum electric field in the depletion region, respectively, are

a. 2.7 µm and 2.3 x 10

^{5}V/cm

b. 0.3 µm and 4.15 x 10

^{5}V/cm

c. 0.3 µm and 0.42 x 10

^{5}V/cm

d. 2.1 µm and 0.42 x 10

^{5}V/cm

**Solution :**https://www.youtube.com/watch?v=PRyI9roqNbA

7. The diode in the circuit shown, if V

_{on}= 0.7 volts but is ideal otherwise. If V

_{i}= 5 sin(ωt) volts, the minimum and maximum values of V

_{o}(in volts) are, respectively,

a. -5 and 2.7

b. 2.7 and 5

c. -5 and 3.85

d. 1.3 and 5

**Solution :**https://www.youtube.com/watch?v=VNI1bsbW2i8

8. For the N channel MOS transistor shown in the figure, the threshold voltage V

_{TH}is 0.8 volts. Neglect channel length modulation effects. When the drain voltage V

_{D}= 1.6 volts, the drain current I

_{D}was found to be 0.5 mA. If V

_{D}is adjusted to be 2 volts by changing the values of R and V

_{DD}, the new value of I

_{D}(in mA) is

a. 0.625

b. 0.75

c. 1.125

d. 1.5

**Solution :**https://www.youtube.com/watch?v=wsv90UUqYVY

9. For the MOSFETs shown in the figure, the threshold voltage |V

_{t}| = 2 volts and K = 0.5µc

_{ox}(W/L) = 0.1 mA/V

^{2}. The value of I

_{D}(in mA) is …………

**Solution :**https://www.youtube.com/watch?v=abv9XXV0jks

**SET – 3 (16th February 2014 (Forenoon))**

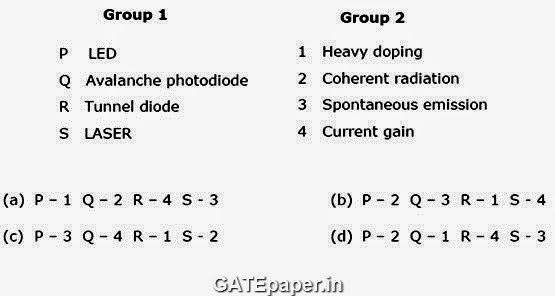

1. In MOSFET fabrication, the channel length is defined during the process of

a. Isolation oxide growth

b. Channel stop implantation

c. Poly-silicon gate patterning

d. Lithography step leading to the contact pads

**Solution :**https://www.youtube.com/watch?v=QPQ5hOdbGjE

2. A thin P type silicon sample is uniformly illuminated with light which generates excess carriers. The recombination rate is directly proportional to

a. The minority carrier mobility

b. The minority carrier recombination lifetime

c. The majority carrier concentration

d. The excess minority carrier concentration

**Solution :**https://www.youtube.com/watch?v=47L011RUiuM

3. At T = 300

^{o}K, the hole mobility of a semiconductor µ

_{p}= 500 cm

^{2}/volt-sec and KT/q = 26 mV. The hole diffusion constant D

_{p}in cm

^{2}/sec is ………

**Solution :**https://www.youtube.com/watch?v=cfegvwvHk-A

4. In the circuit shown, the PNP transistor has |V

_{BE}| = 0.7 volts and β = 50. Assume that R

_{B}= 100 KΩ. For V

_{o}to be 5 volts, the value of R

_{C}(in KΩ) is ……..

**Solution :**https://www.youtube.com/watch?v=ohf5m4r0gzs

5. The donor and acceptor impurities in an abrupt junction silicon diode are 1 x 10

^{16}cm

^{-3}and 5 x 10

^{18}cm

^{-3}, respectively. Assume that the intrinsic carrier concentration in silicon n

_{i}= 1.5 x 10

^{10}cm

^{-3}at 300

^{o}K, KT/q = 26 mV and the permittivity of silicon Ԑ

_{si}= 1.04 x 10

^{-12}F/cm. The built in potential and the depletion width of the diode under thermal equilibrium conditions, respectively are

a. 0.7 volts and 1 x 10

^{-4}cm

b. 0.86 volts and 1 x 10

^{-4}cm

c. 0.7 volts and 3.3 x 10

^{-5}cm

d. 0.86 volts and 3.3 x 10

^{-5}cm

**Solution :**https://www.youtube.com/watch?v=W1tmcbDY0-4

6. The slope of the I

_{D}vs. V

_{GS}curve of an N channel MOSFET in linear region is 10

^{-3}Ω

^{-1}at V

_{DS}= 0.1 volts. For the same device, neglecting channel length modulation, the slope of the √I

_{D}vs. V

_{GS}curve (in √A/V) under saturation regime is approximately…………….

**Solution :**https://www.youtube.com/watch?v=rDjsCvkSUtk

7. An ideal MOS capacitor has boron doping concentration of 10

^{15}cm

^{-3}in the substrate. When a gate voltage is applied, a depletion region of width 0.5 µm is formed with a surface (channel) potential of 0.2 volts. Given that Ԑ

_{o}= 8.854 x 10

^{-14}F/cm and the relative permittivity’s of silicon and silicon dioxide are 12 and 4 respectively. The peak electric field (in V/µm) in the oxide region is ……………..

**Solution :**https://www.youtube.com/watch?v=K4aRAJxegSI

8. In the circuit shown, the silicon BJT has β = 50. Assume V

_{BE}= 0.7 volts and V

_{CEsat}= 0.2 volts. Which one of the following statements is correct?

a. For R

_{C}= 1 kΩ, the BJT operates in the saturation region

b. For R

_{C}= 3 kΩ, the BJT operates in the saturation region

c. For R

_{C}= 20 kΩ, the BJT operates in the cutoff region

d. For R

_{C}= 20 kΩ, the BJT operates in the linear region

**Solution :**https://www.youtube.com/watch?v=zd_NFD2CN8E

9. For the MOSFET M

_{1}shown in the figure, assume W/L = 2, V

_{DD}= 2.0 volts, µ

_{n}c

_{ox}= 100 µA/V

^{2}and V

_{TH}= 0.5 volts. The transistor M

_{1}switches from saturation region to linear region when V

_{in}(in volts) is …………..

**Solution :**https://www.youtube.com/watch?v=AWdemWJenw4

**SET - 4 (16th February 2014 (Afternoon))**

1. At T = 300

^{o}K, the band gap and the intrinsic carrier concentration of GaAs are 1.42 eV and 10

^{6}cm

^{-3}respectively. In order to generate electron hole pairs in GaAs, which one of the wavelength (λ

_{c}) ranges of incident radiation, is most suitable? (Given that Plank’s constant = 6.62 x 10

^{-34}J-sec, velocity of light is 3 x 10

^{10}cm/s and charge of electron is 1.6 x 10

^{-19}C)

a. 0.42 µm < λ

_{c}< 0.87 µm

b. 0.87 µm < λ

_{c}< 1.42 µm

c. 1.42 µm < λ

_{c}< 1.62 µm

d. 1.62 µm < λ

_{c}< 6.62 µm

**Solution :**https://www.youtube.com/watch?v=NML_fLbqHxw

2. In the figure, ln(ρ

_{i}) is plotted as a function of 1/T, where ρ

_{i}is the intrinsic resistivity of silicon, T is the temperature, and the plot is almost linear. The slope of the line can be used to estimate

a. Band gap energy of silicon

b. Sum of electron and hole mobility in silicon

c. Reciprocal of the sum of electron and hole mobility in silicon

d. Intrinsic carrier concentration of silicon

**Solution :**https://www.youtube.com/watch?v=nqt3J_lXwuU

3. The cutoff wavelength (in µm) of light that can be used for intrinsic excitation of a semiconductor material of band gap E

_{g}= 1.1 eV is …………..

**Solution :**https://www.youtube.com/watch?v=bfF2NoqjjDU

4. If the emitter resistance in a common emitter voltage amplifier is not bypassed, it will

a. Reduce both the voltage gain and the input impedance

b. Reduce the voltage gain and increase the input impedance

c. Increase the voltage gain and reduce the input impedance

d. Increase both the voltage gain and the input impedance

**Solution :**https://www.youtube.com/watch?v=4YjclPDw5lM

5. Consider a silicon sample doped with N

_{D}= 1 x 10

^{15}/cm

^{3}donor atoms. Assume that the intrinsic carrier concentration n

_{i}= 1.5 x 10

^{10}cm

^{-3}. If the sample is additionally doped with N

_{A}= 1 x 10

^{18}cm

^{-3}acceptor atoms, the approximate number of electrons /cm

^{3}in the sample, at T = 300

^{o}K, will be…………

**Solution :**https://www.youtube.com/watch?v=T4s49hCIrz0

6. Consider two BJTs biased at the same collector current with area A

_{1}= 0.2 µm x 0.2 µm and A

_{2}= 300 µm x 300 µm. assuming that all other device parameters are identical, KT/q = 26 mV, the intrinsic carrier concentration is 1 x 10

^{10}cm

^{-3}, and q = 1.6 x 10

^{-19}C, the difference between the base emitter voltages (in mV) of the two BJTs (i.e. V

_{BE1}– V

_{BE2}) is …………….

**Solution :**https://www.youtube.com/watch?v=R-GogUWvN74

7. An N type semiconductor having uniform doping is biased as shown in the figure.

**Solution :**https://www.youtube.com/watch?v=XhOs_vAWETw

8. A BJT in a common base configuration is used to amplify a signal received by a 50Ω antenna. Assume KT/q = 25 mV, the value of collector bias current (in mA) required to match the input impedance of the amplifier to the impedance of the antenna is ………..

**Solution :**https://www.youtube.com/watch?v=HBjqJb91WbE
